Fayans Ebatlama Hattı
Türkçe:

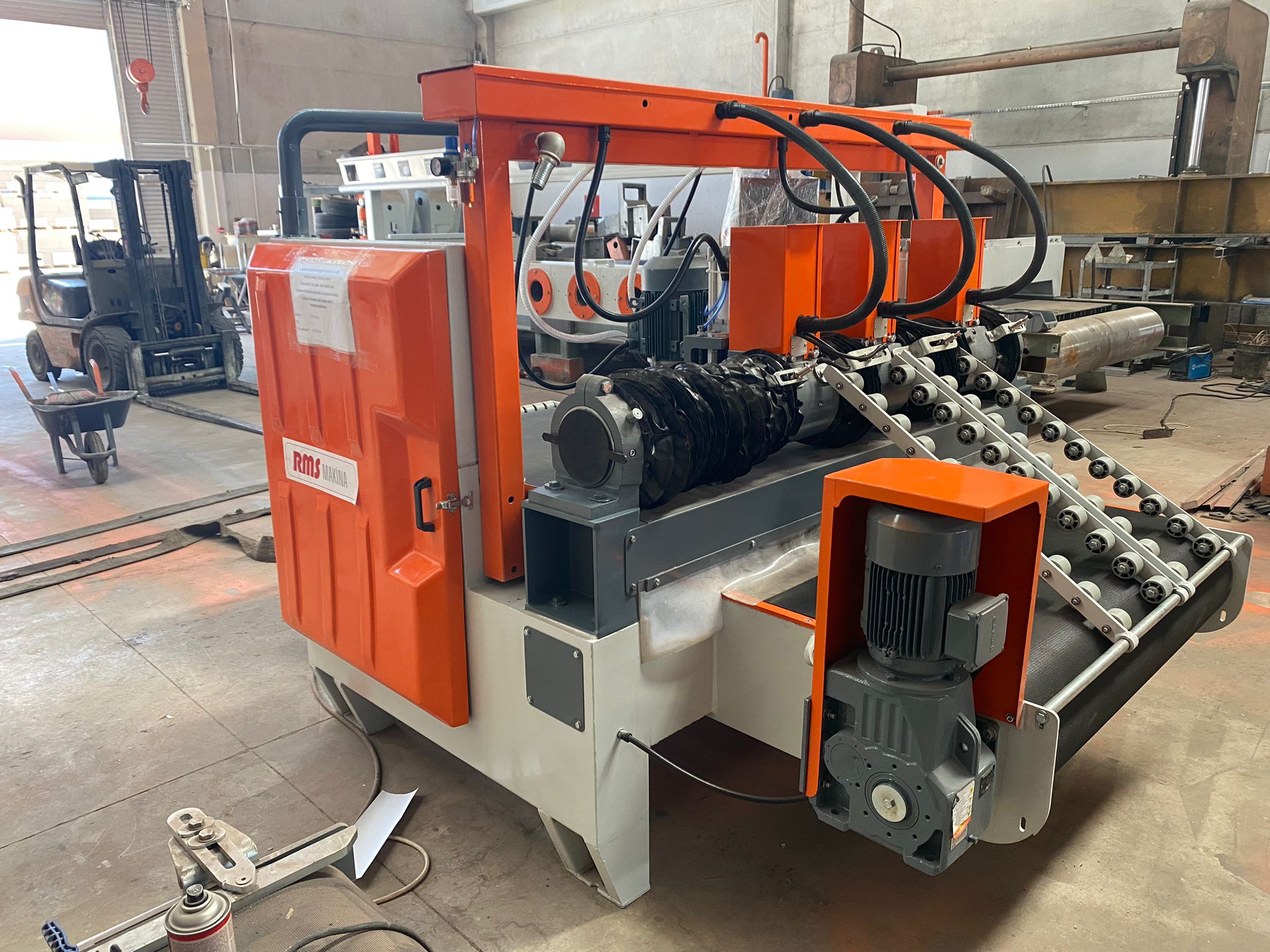

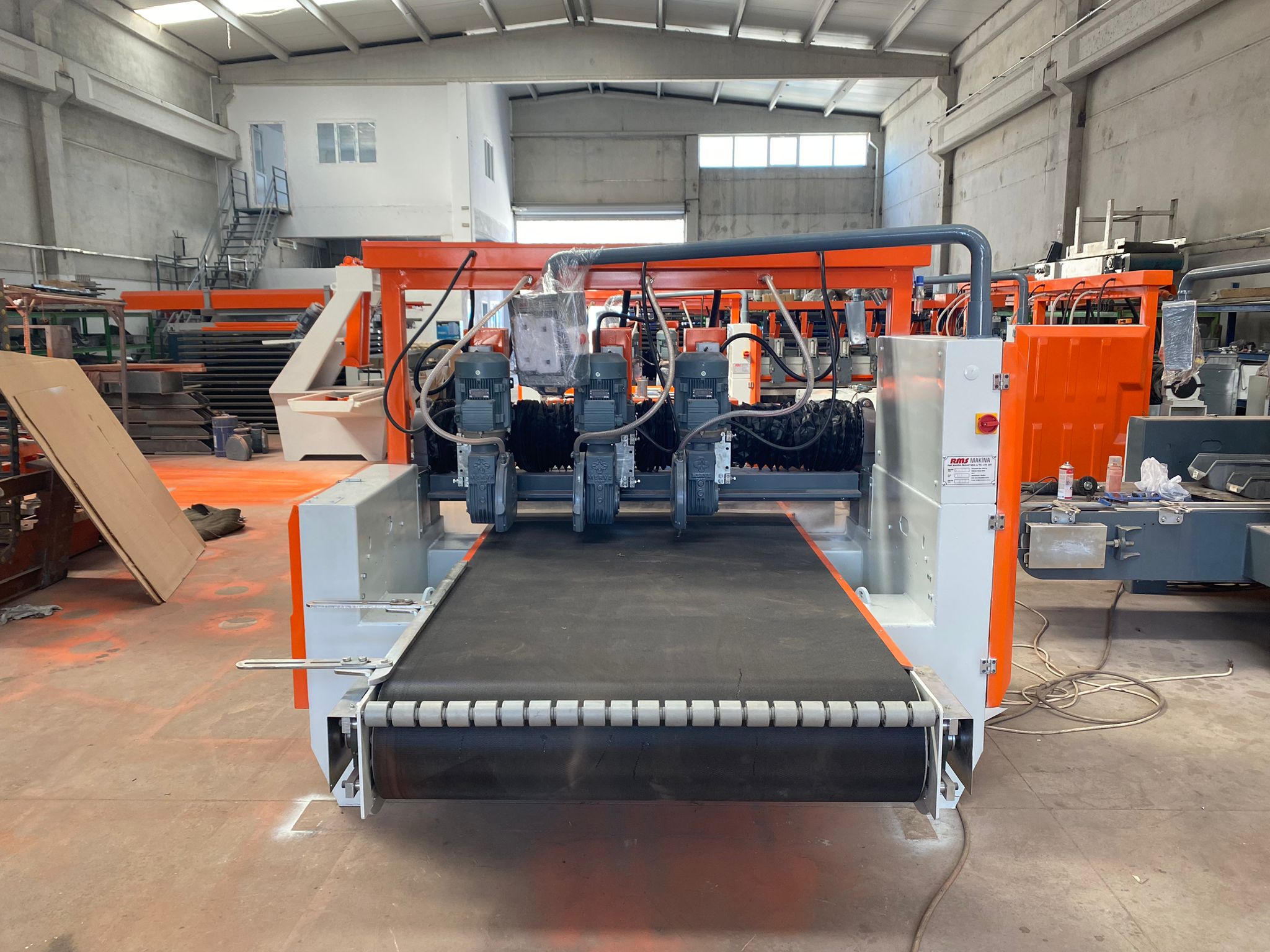

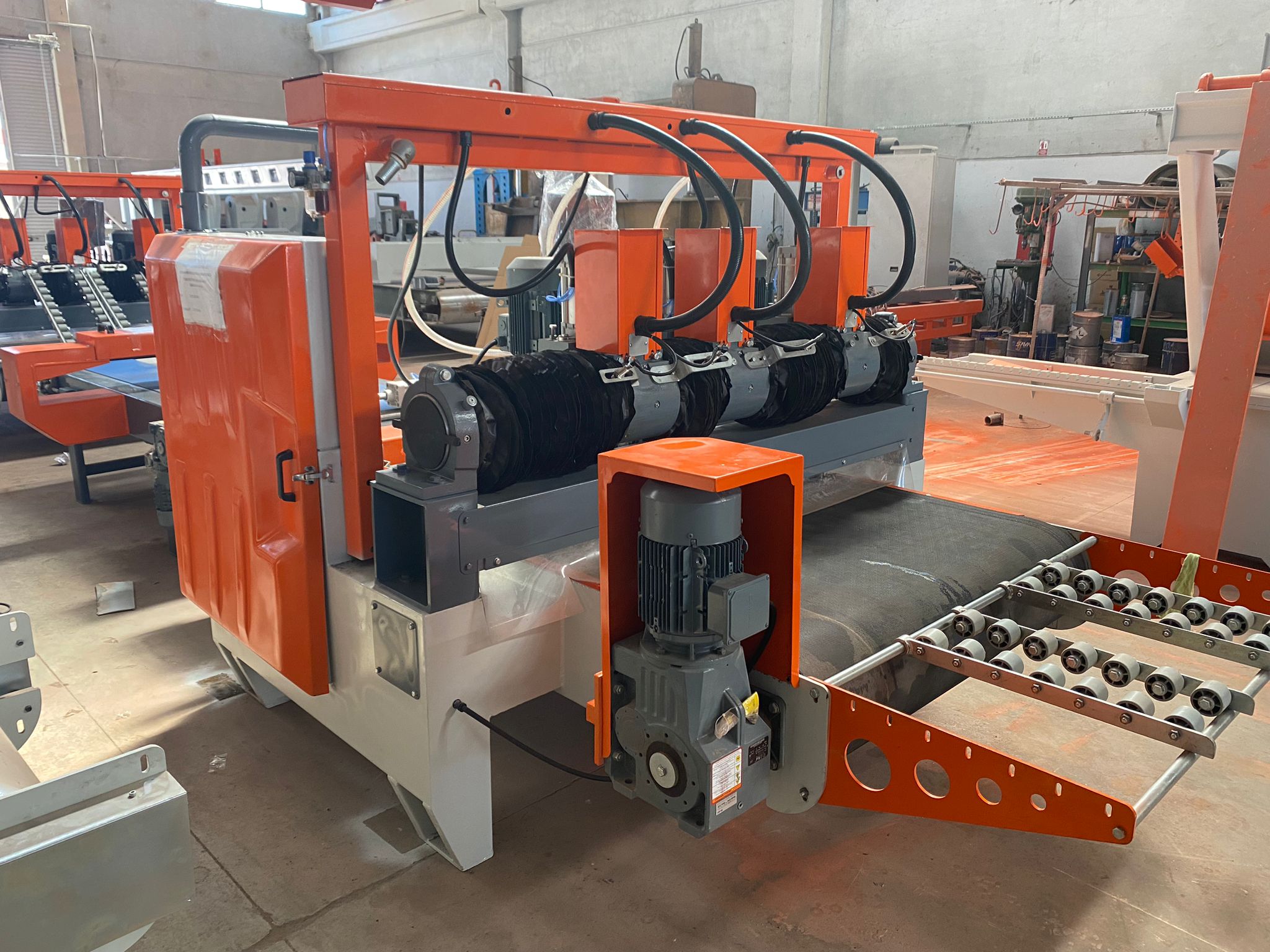

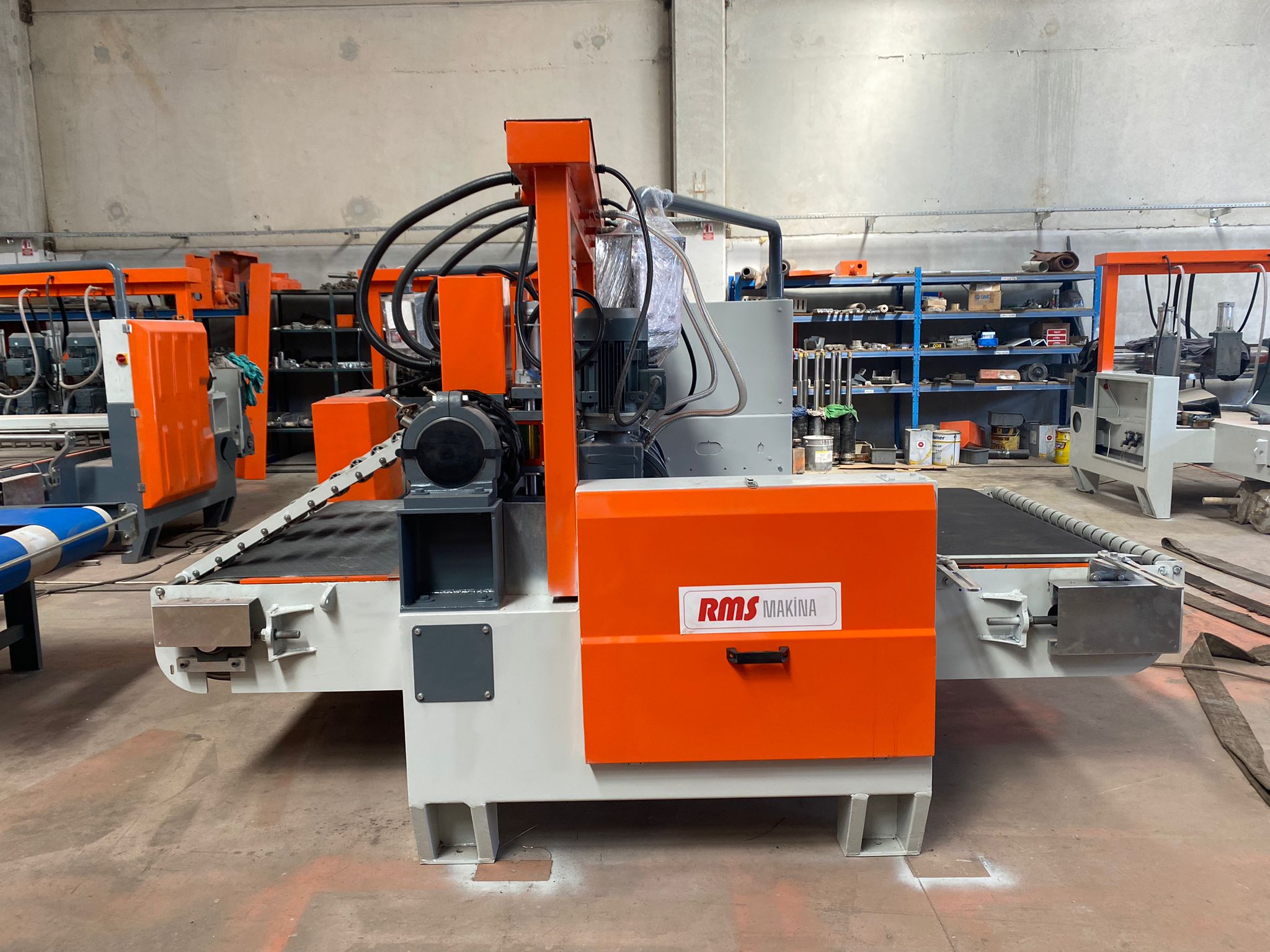

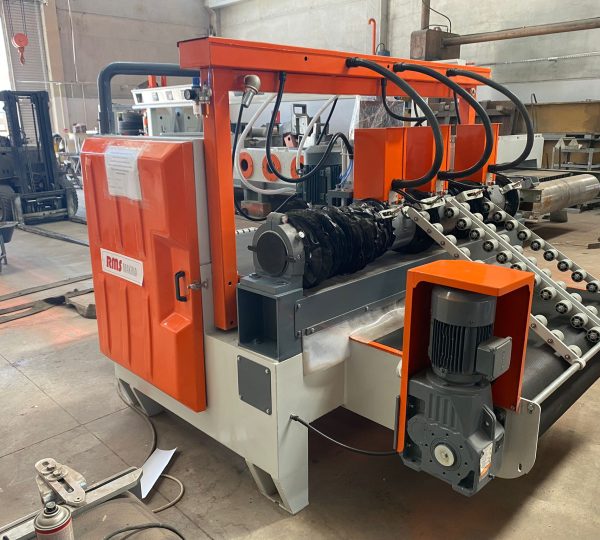

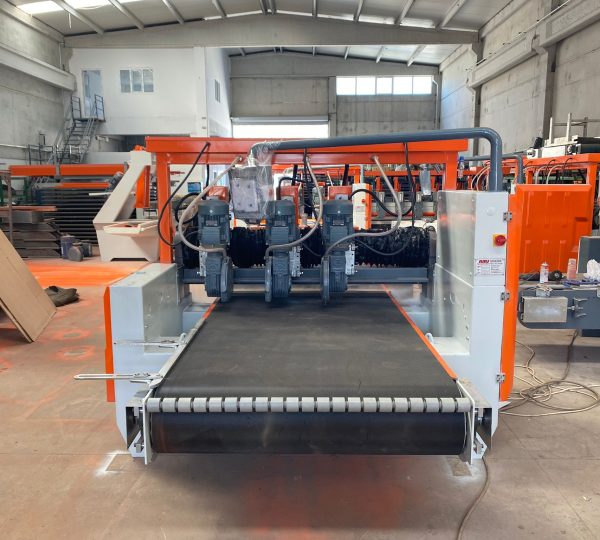

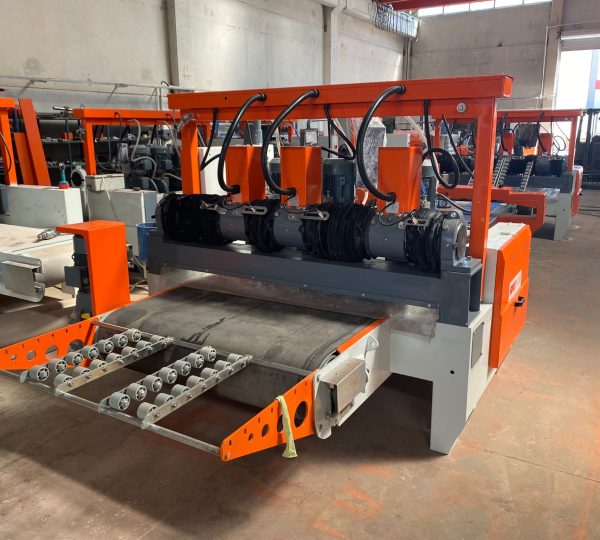

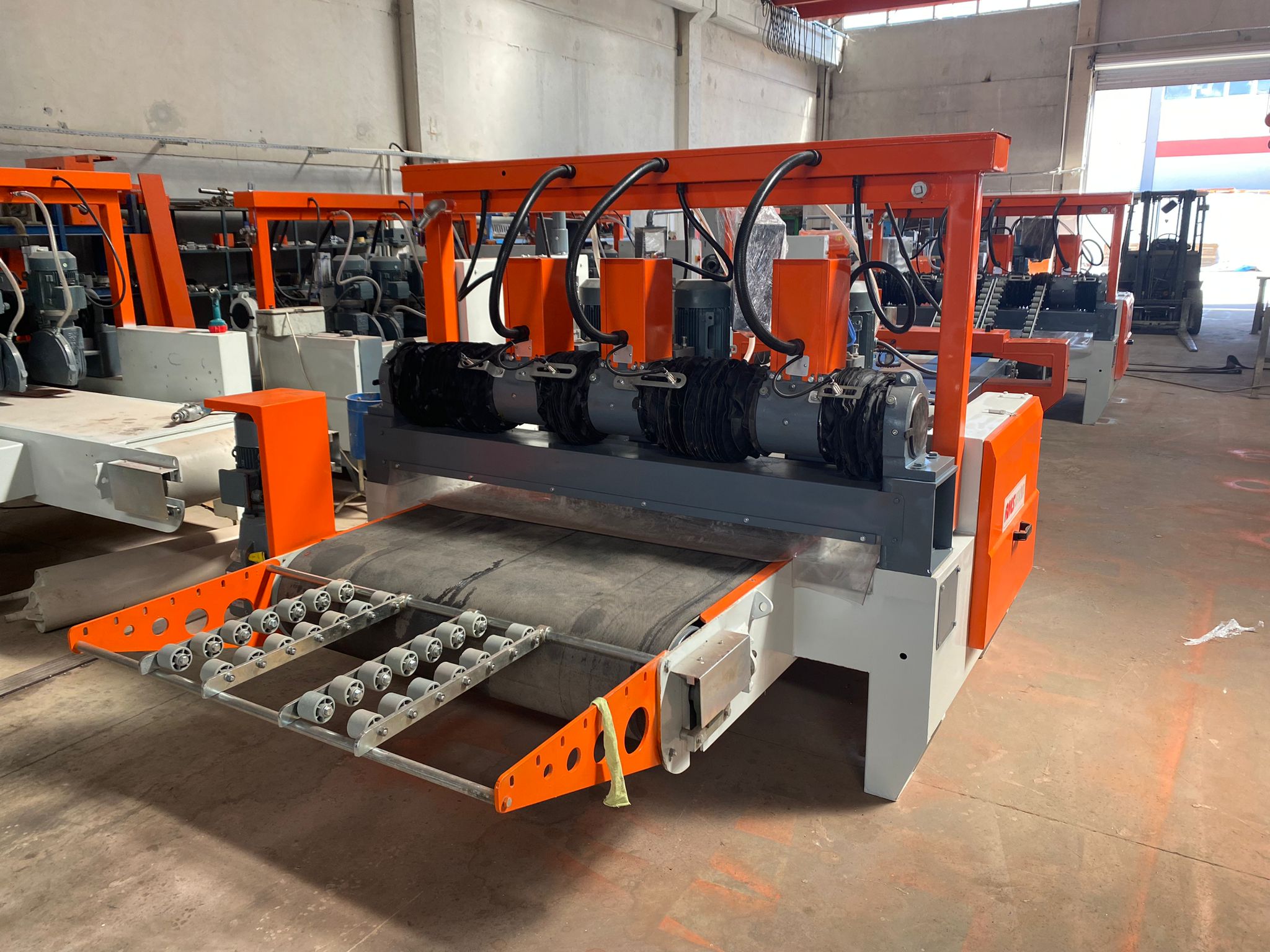

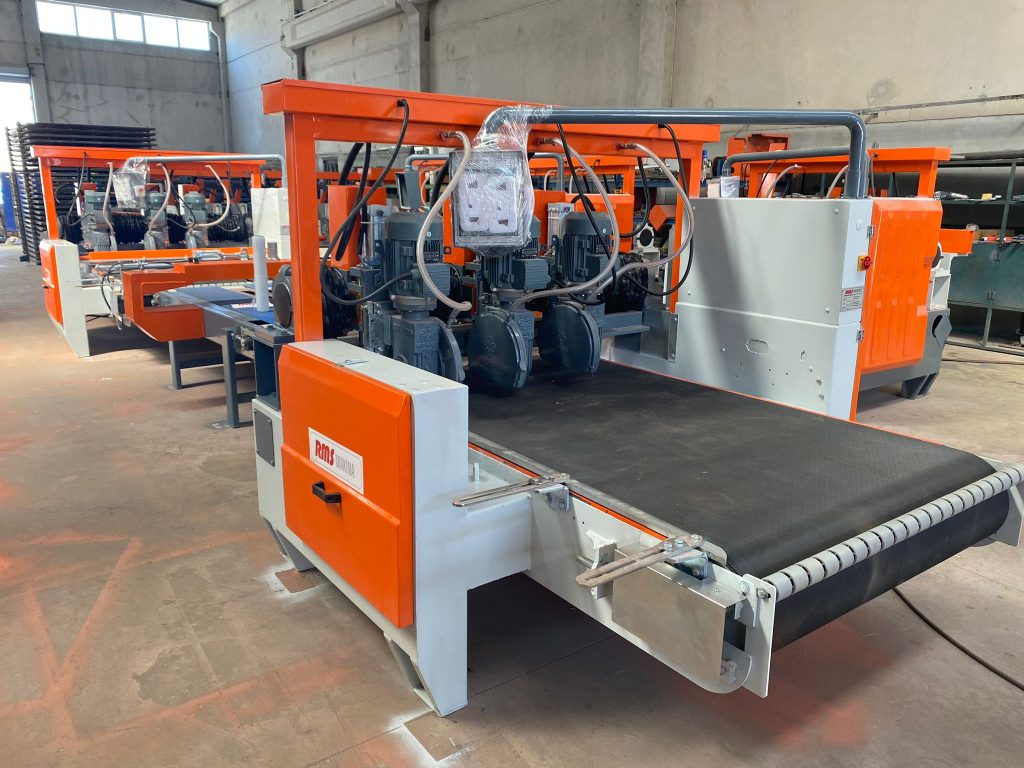

Fayans ebatlama hattı toplamda üç adet makineden oluşmaktadır. Hattın başında ve sonunda bulunan trimming
makinası ve ortalarında ise pnömatik çevirme makinası vardır. Hattın kesim hassasiyeti 2/10 mm’dir.
English:
The Tile Sizing Line consists of three machines in total. At the beginning and end of the line there is a trimming
machine, and in the middle a pneumatic rotary machine. The accuracy is 2/10 mm.
Teknik Özellikler / Technical Features
| Özellik | Technical Data | 0600–0600 | 0600–1300 | 1300–1300 | Birim / Unit |
|---|---|---|---|---|---|
| Testere Motor Gücü | Power of Saw | 5.5 / 7.5 | 5.5 / 7.5 | 5.5 / 7.5 | kW |
| Testere Çapı | Saw Diameter | 350 / 400 | 350 / 400 | 350 / 400 | mm |
| Testere Sayısı | Number of Saw | 2 + 2 | 2 + 2 | 2 + 2 | adet / pcs |
| Bant Hızı | Speed of Conveyor Belt | 8000 | 8000 | 8000 | mm/dak |
| Minimum Kesme Genişliği | Minimum Cutting Width | 650 | 650 | 1300 | mm |
| Maksimum Kesme Kalınlığı | Maximum Cutting Width | 650 | 1300 | 1300 | mm |
| Kontrol Sistemi | Control System | Servo M | PLC + Servo M | PLC + Servo M | - |
| En | Width | 2500 | 2500 | 2500 | mm |
| Boy | Length | 5500 | 6500 | 6500 | mm |
| Yükseklik | Height | 2300 | 2500 | 2500 | mm |
| Ağırlık | Weight | 4230 | 5500 | 6500 | kg |
